Heater furnace accumulator 750W 230V

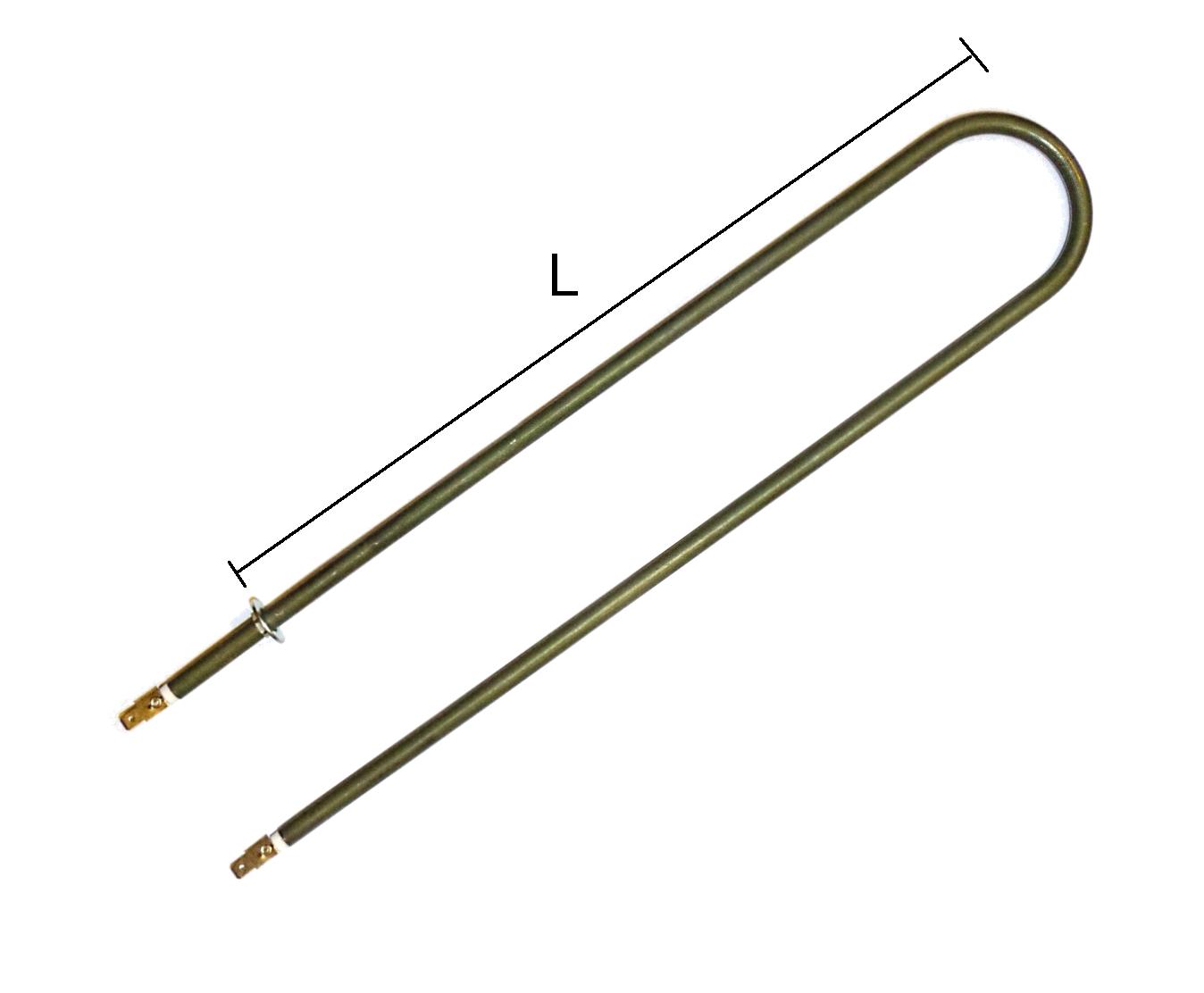

"U" type tubular heater, made of heat-resistant steel, intended for use in DOMGOS accumulative furnaces and others.
The total length of the heater is 405mm (from the connections).
| Power | Length | Surface load W/cm2 |
|---|---|---|
| 750W | 405mm | ~3.8 |
Please refer to the application table in relation to surface load.
| Application | Tube material |
|---|---|
| Copper | Ordinary |
| Steel | Stainless Steel |
| Standing water | 10 |
| Moving water | 14 |
| Flowing water | 25 |
| Steam generator | 6 |
| Thin oil | |
| Thick oil | |
| Vegetable oil | |
| Tar | |
| Special heating oil | |
| Stationary air | |
| Moving air v=2 m/s | |
| Moving air v=10 m/s | |
| Alkaline bath | |
| Flooded aluminum |
Message sent!
Thank you for contacting us. We will reply as soon as possible.
Dane techniczne
| Power [W] | 750 |
| Blind spot [mm] | 2x50 |
| Material | Heat-resistant steel |
| Shape | "U" |
| Diameter [mm] | 8,5 |
| Lenght [mm] | 350 |
| Voltage | 230V |
| Destiny | Air heating, Radiator, Storage heater |
